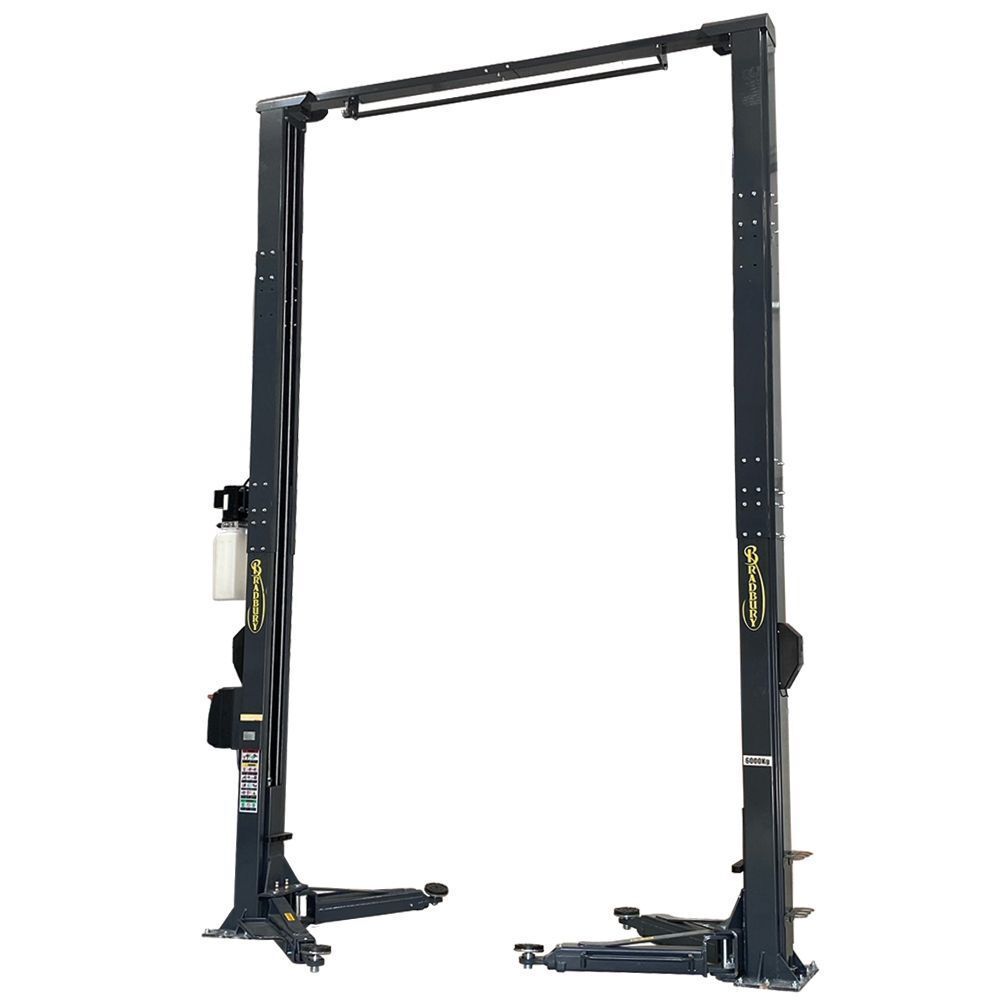

Bradbury H26 Series – 6 Tonne Two Post Lift

Bradbury H26 Series – 2 Post Lift (6.0 tonne)

Finance options available (Subject to credit)

The H26 series of Bradbury twin-ram two post lifts are fully baseless with over head gantries making them ideal for moving transmission jacks and oil drainers beneath the vehicle. With a low pad height of just 122mm these lifts are suitable for most makes and models of cars up to LWB vans.

Versions:

H2603G – Gantry height of 4256mm (drive under clearance)

H2603HG – Gantry height of 5256mm (drive under clearance).

**Please note that the colour may vary from that shown in the picture, new colours for 2021 are Grey RAL7016 with yellow Bradbury Decals**

Both models are only available in three phase.

Brand: Bradbury

CALL FOR PRICE

Tech Spec


Lifting capacity	6.0 tonne
Lifting & lowering time	60 Seconds (both models - G & HG)
Lowering time	40 Seconds (both models - G & HG)
Minimum height (pad)	122mm-215mm (both models - G & HG)
Maximum height	1872mm - 1965mm (both models - G & HG)
Front minimum / maximum arm length	981mm / 1811mm (both models G & HG)
Rear minimum / maximum arm length	981mm / 1811mm (both models G & HG)
Motor size – Three phase	3 Phase only - 2.2kW
Power Requirements	3 Phase - 16a Isolator Required
Operation	Electro-Hydraulic

Features

The H2603G Bradbury twin-ram two post lift is fully baseless with an overhead gantry making this lift ideal for moving transmission jacks and oil drainers beneath the vehicle being lifted.

With a low pad height of 122mm and a 6 tonne capacity, this lift is suitable for most makes and models of cars up to LWB vans. Gantry height of 4256mm (drive under clearance)

The H2603HG Bradbury twin-ram two post lift is fully baseless with an overhead gantry making this lift ideal for moving transmission jacks and oil drainers beneath the vehicle being lifted.

With a low pad height of just 122mm, this lift is suitable for most makes and models of cars up to LWB vans. Gantry height of 5256mm (drive under clearance).
