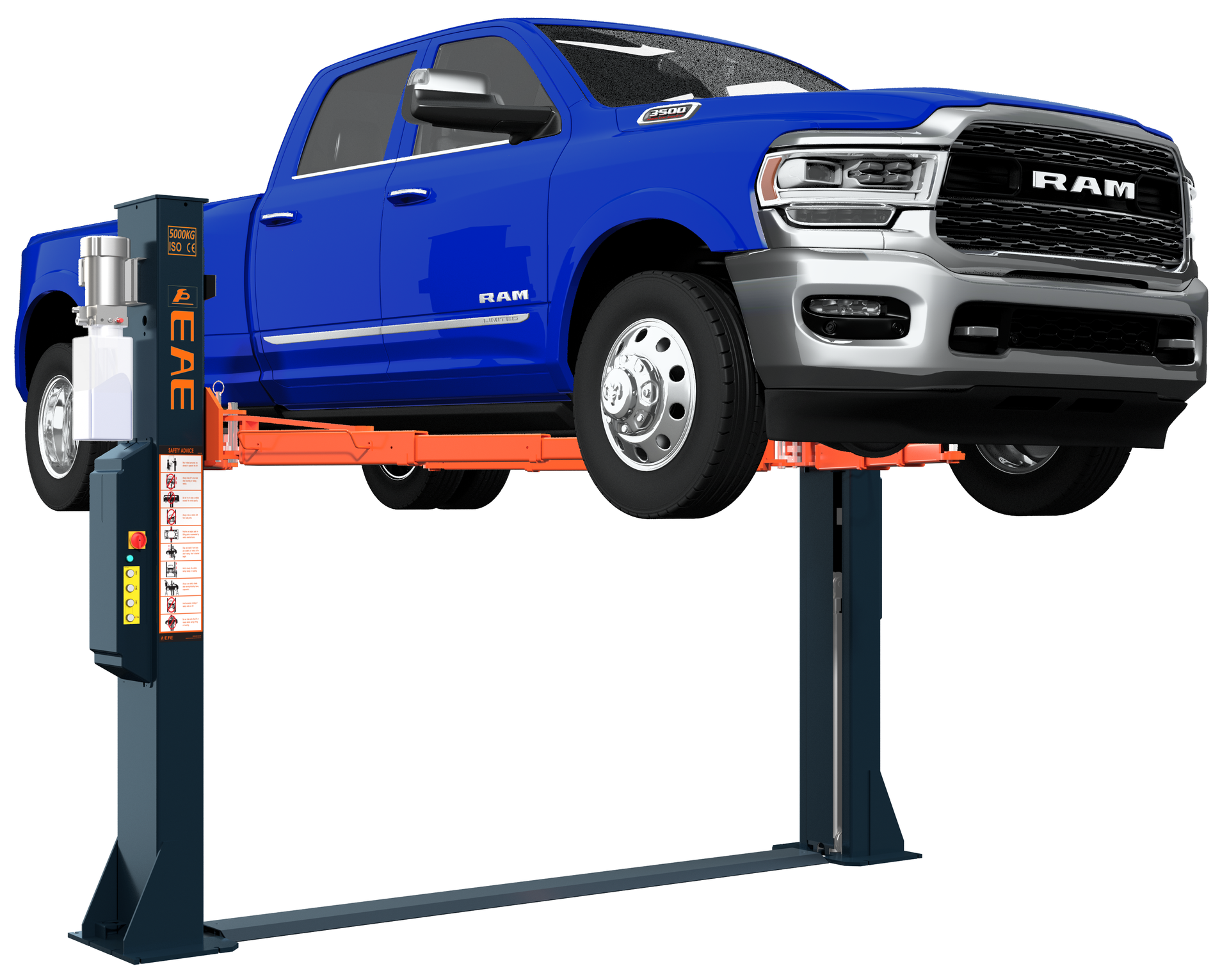

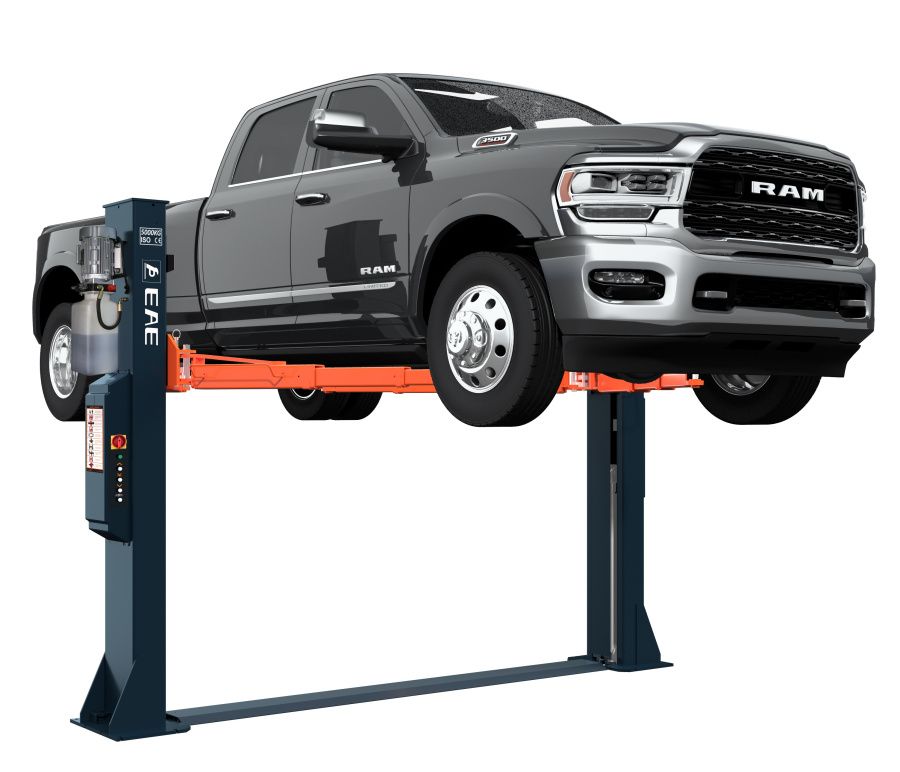

EAE - 62B.50T.E
2 Post Lift (5.0 tonne)
Finance options available
(Subject to credit)
The EAE - 62B.50T.E Series of Electro-hydraulic Two Post Lifts feature a 5 tonne symmetrical post design with an low profile centre tray. Suitable for cars and vans, this semi baseless lift provides the user with unrestricted space above depending on ceiling height allowing high roof vehicles to be safely lifted.
Brand: EAE

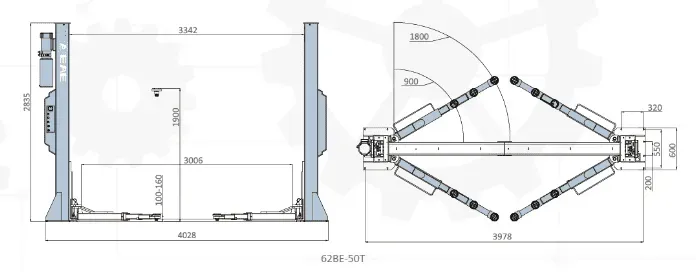

Tech Spec
| Lifting capacity | 5.0 tonne |
| Lifting / lowering time | 30 Seconds / 30 Seconds |
| Minimum height (pad) | 100mm |
| Max carriage height | 1900mm |
| minimum / maximum arm length | 900mm - 1800mm |
| Overall width of Lift | 4028mm |
| Power supply | 3 ph / 1 ph |
| Overall Height of Lift | 2835mm |
| Operation | Electro -Hydraulic |
Features
- Lifting capacity: 5.0 tonne
- Minimum lifting height: 100 mm;
- Lifting height: 1900 mm;
- Height of the lift: 2835 mm;
- Width between columns: 3342 mm;
- Overall width of the lift: 4028 mm;
- 3-stage front lifting arms length: 900-1300-1800 mm;
- 3-stage rear lifting arms length: 900-1300-1800 mm;
- Electric lock release;
- Lifting pad extensions 100mm set (4pcs.);
- Height limit switch
- Motor power: 2.2 kW;
