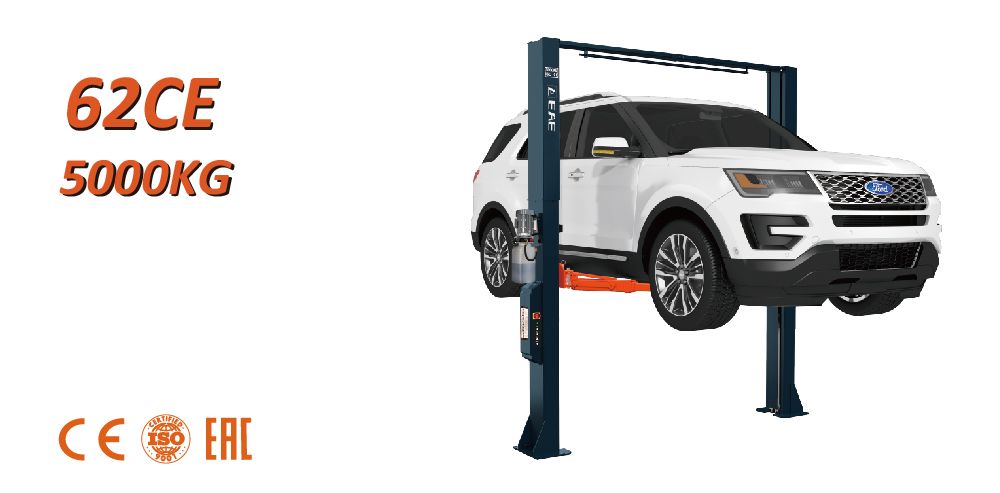

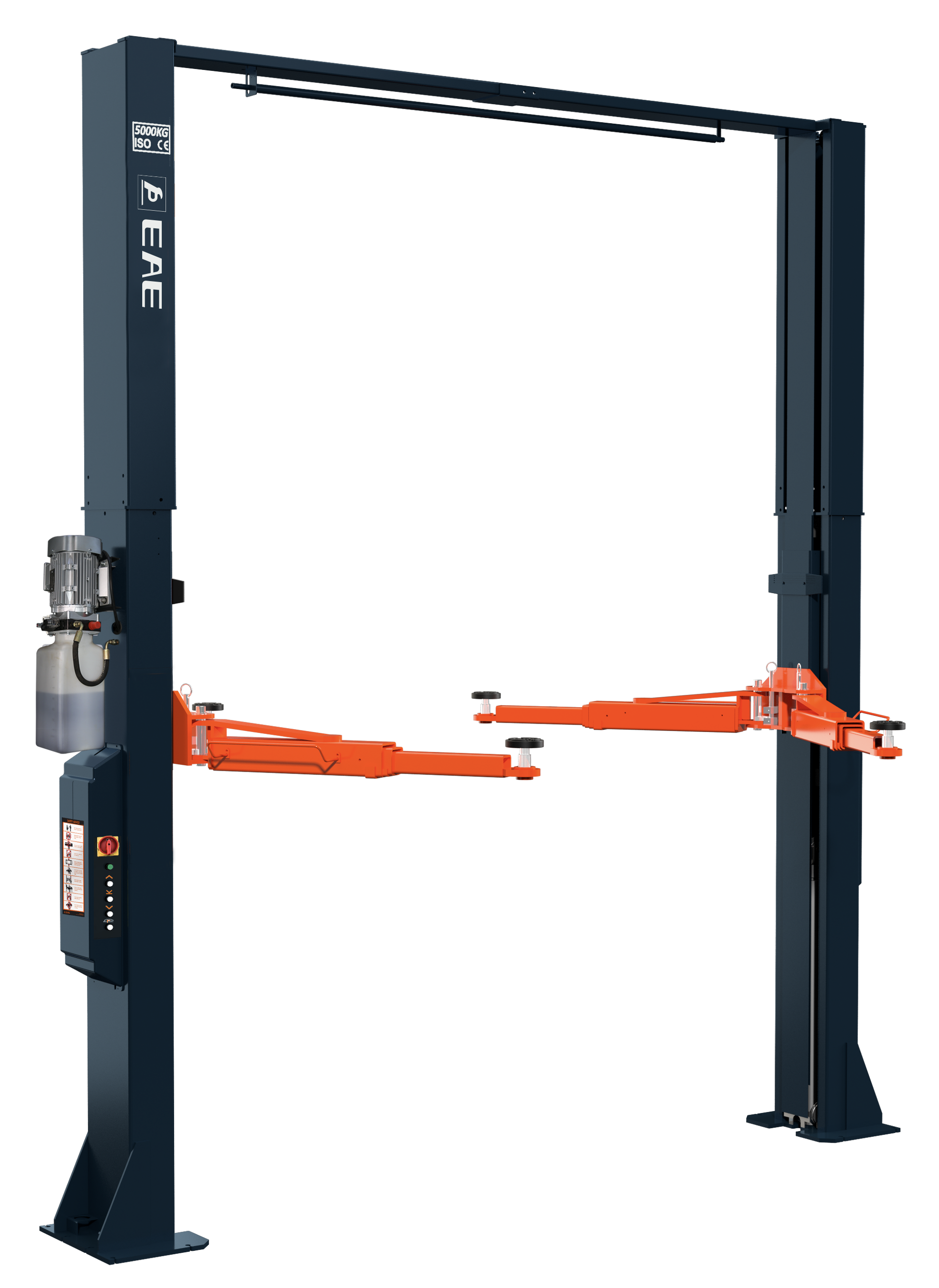

EAE-62C.50T.E 5 Tonne 2 Post Lift (3 Phase or Single Phase)
EAE - 62C.50T.E 2 Post Lift

EAE - 62C.50T.E

2 Post Lift (5.0 tonne)

Finance options available (Subject to credit)


The EAE - 62C.50T.E series is a good quality, 5-tonne, electro-hydraulic lift with an overhead gantry, leaving the floor completely clear – ideal for moving transmission jacks or oil drainers under the suspended vehicle.

The design and robust build quality makes the 62C.50T.E suitable for taller vehicles as well as cars.

Available in both 1PH and 3PH, this is a great choice for most workshops!


Brand: EAE


CALL FOR PRICE

Tech Spec

Lifting capacity 5 tonne
lowering time 35 Seconds
Minimum height 100mm
Max lifting height 1900mm
Minimum / maximum arm length 3 stage arms 900mm / 1800mm
Drive through width 3006mm
Motor size 2.2kw
Power requirements 3PH / 400V / 50HZ or 1PH / 240V / 50HZ
Operation Electro-Hydraulic
Overall width 4028mm

Features

  • Lifting capacity: 5000 kg;
  • Minimum lifting height: 100 mm;
  • Lifting height: 1900 mm;
  • Height of the lift: 4451 mm;
  • Width between columns: 3342 mm;
  • Overall width of the lift: 4028 mm;

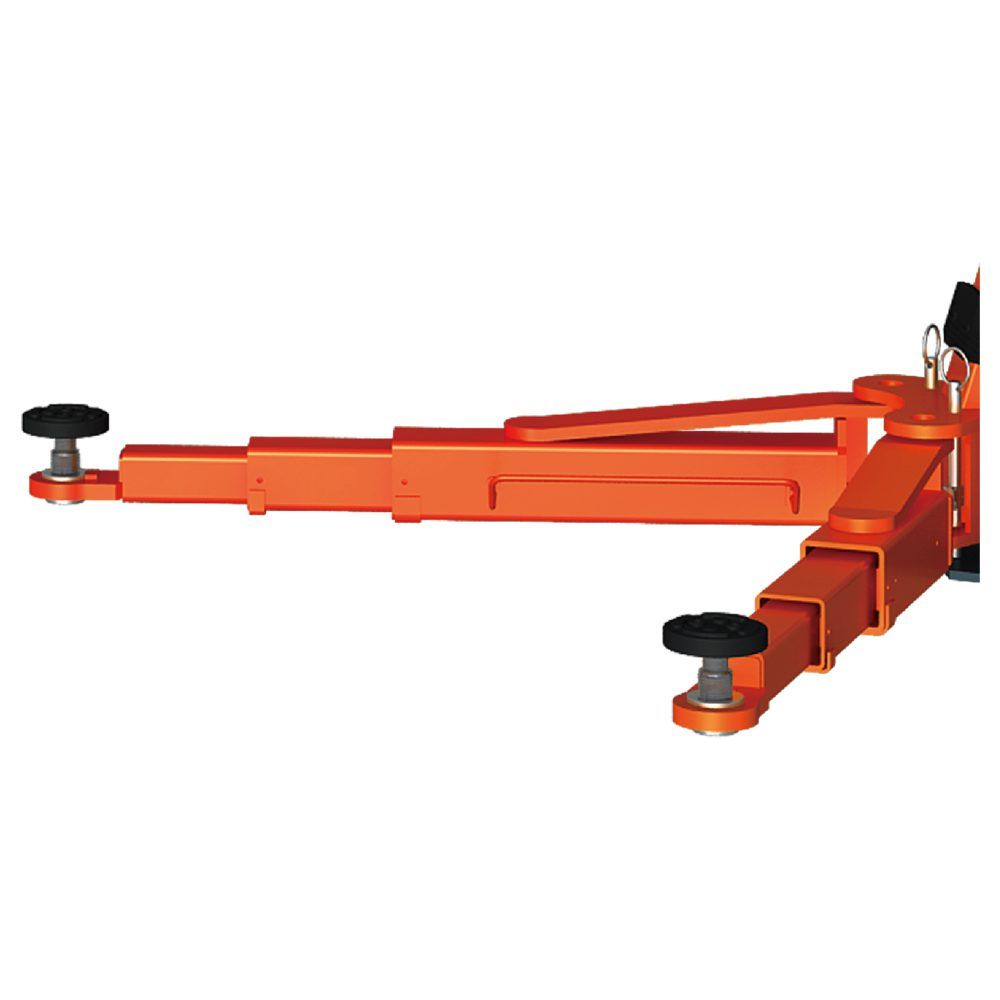

  • 3-stage front lifting arms length: 900-1300-1800 mm;
  • 3-stage rear lifting arms length: 900-1300-1800 mm;
  • Electric lock release;
  • Lifting pad extensions 100mm set (4pcs.);
  • Height limit switch
  • Motor power: 2.2 kW;
