EAE - 6435V2.B.57L.50T.E 5 Tonne 4 post wheel alignment lift

EAE - 6435V2.B.57L.50T.E

4 Post Wheel Alignment Lift

(5.0 tonne)

Finance options available (Subject to credit)

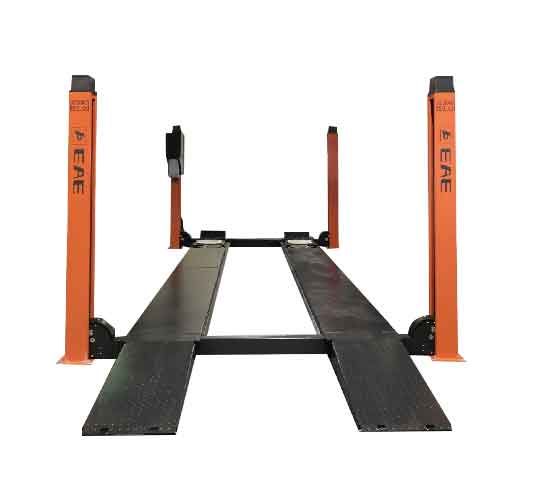

The EAE - 6435V2.B.57L.50T.E

Four Post Wheel alignment Lift is robust, reliable and features an impressive 5.0 tonne lifting capacity and platforms which measure 5780mm. The impressive design and attention to detail on all aspects ensure that this EAE lift will give years of service.

Available in both single and three phase.

Brand: EAE

CALL FOR PRICE

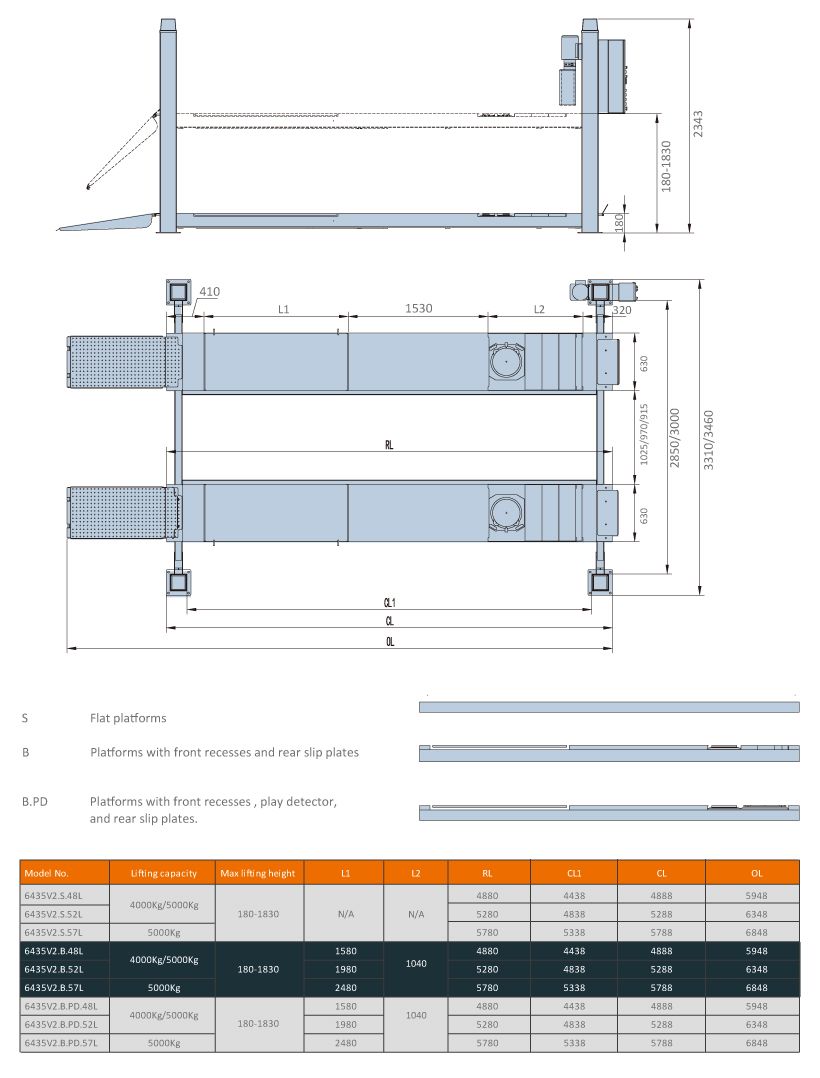

Tech Spec


Lifting capacity	5.0 tonne
Platform length	5780mm
Platform width	630mm
Overall length	6848mm
Overall width	3460mm
Overall height	2343mm
Power supply	1ph /3ph
Type	Wheel alignment

Features

5.0 tonne lifting capacity
Maximum lift height 1830mm
Platform length 5780mm
Long rear slip plate and adjustable turntable positions for alignment use
Reliable mechanical safety locking system
Top switch which limits the travel of the platforms
alarm buzzer for safe descending
24V safety control voltage
Reliable electrical release for easy and efficient use
Low profile runway is convenient for driving on and off and less demanding on space
Optional rolling jack
Optional front turn plates
