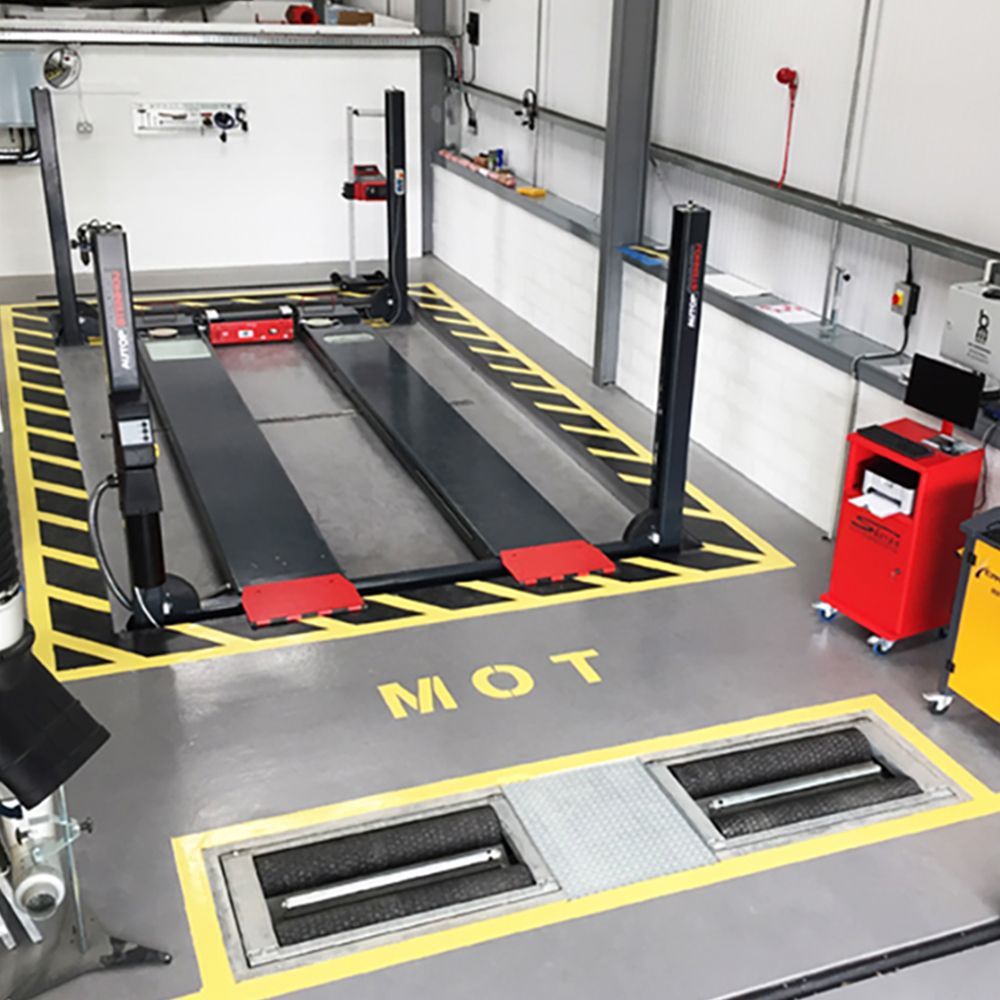

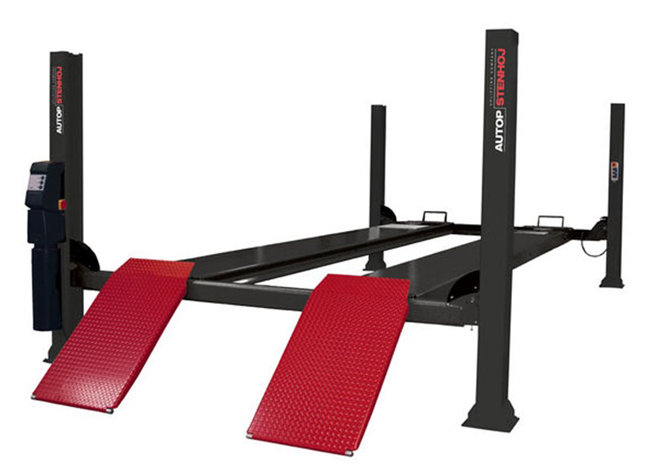

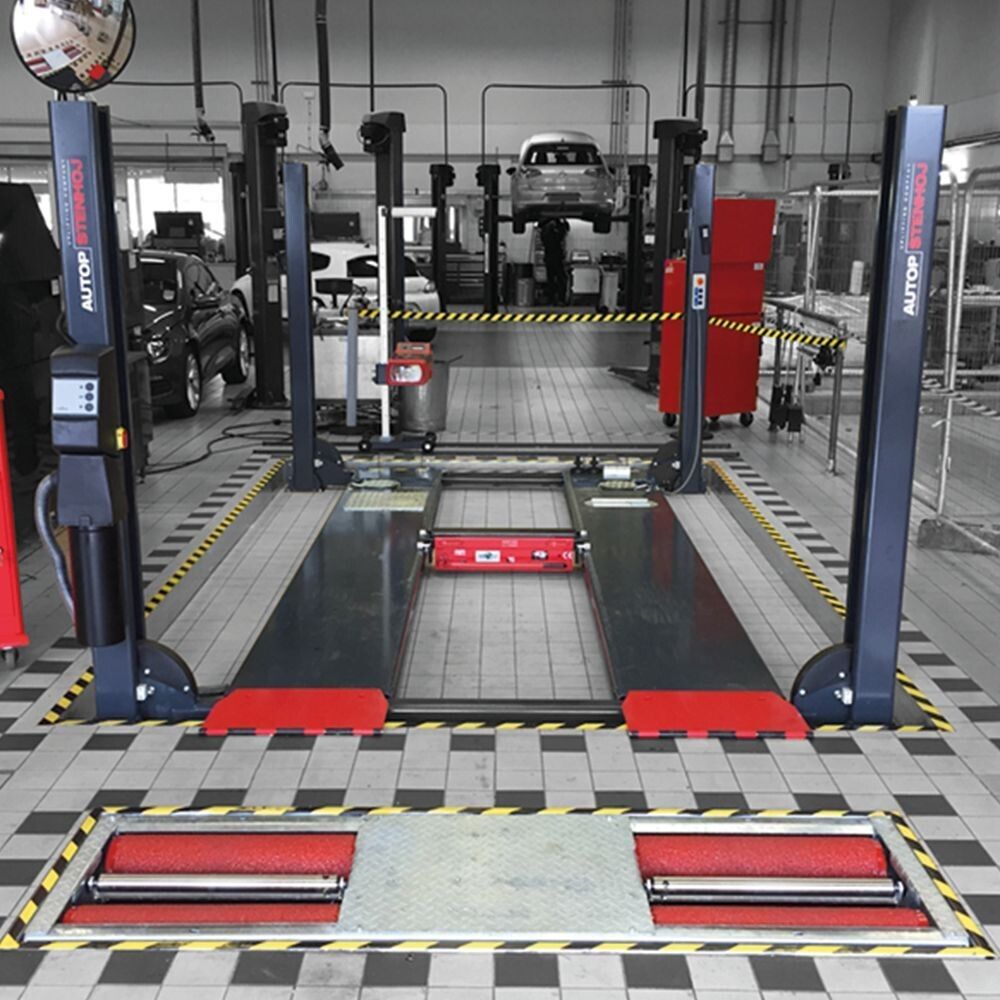

AUTOPSTENHOJ Four Post MOT ATL (One Man) Lifts for Class IV Vehicles

Finance options available (Subject to credit)

The AUTOPSTENHOJ Major MOT Series of class 4 ATL lifts compromises of three different models. As with all other Major Lifts, these ATL lifts are electro-hydraulically operated and are fitted with an eccentric brake and an obstruction system with alarm. As standard, the lifts are fitted with heavy duty recessed steering turntables and pneumatically operated play detectors.

These lifts are fully approved for MOT/ATL testing (ONE MAN).

ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.

Standard colours:
Platforms & posts: grey RAL 7016, ramps: red RAL 3020

AUTOPSTENHOJ Lifts are manufactured in Denmark

Brand: Autopstenhoj

CALL FOR PRICE

Tech Spec

Major ATL	4026-42 MOT	4024-43 ATL	4026-43 ATL	4026-47 ATL
Lifting Capacity, up to	4 tonne	4 tonne	4 tonne	4 tonne
Lifting/Lowering Time	24/26 seconds	24/26 seconds	24/26 seconds	24/26 seconds
Stroke Length	1,670 mm	1,670 mm	1,670 mm	1,670 mm
Working height	1,810 mm	1,810 mm	1,810 mm	1,810 mm
Pump unit	3.0 kW	3.0 kW	3.0 kW	3.0 kW
Voltage	400/3/50-240/1/50	400/3/50-240/1/50	400/3/50-240/1/50	400/3/50-240/1/50
Total length	5,095 mm	5,165 mm	5,160 mm	5,580 mm
Platform width	550 mm	550 mm	630 mm	630 mm
Useable length of platform	4,180 mm	4,260 mm	4,260 mm	4,680 mm
Height	2,235mm	2,235 mm	2,235mm	2,235 mm
Wheel base, min. – max.	variable	variable	variable	variable
Distance between platforms	855 mm	880 mm	855 mm	855 mm
Drive-on height	140 mm	140 mm	140 mm	140 mm
Width between posts	2,600 mm	2,350 mm	2,600 mm	2,600 mm
Total width – outer edges base plates	3,032 mm	2,780 mm	3,032 mm	3,032 mm

Features

Integrated eccentric brake system
Emergency stop valve
Obstruction system
Pneumatic parking system in height adjustable ratchets
Pump and control unit on rear left post; delivered with extra control unit for front right post
Pushbutton control unit with alarm signal
Hydraulic cylinder under left platform
Lifting and lowering by means of cables
Emergency lowering valve
Both platforms fixed.
Platforms prepared for AUTOPSTENHOJ scissor jack
