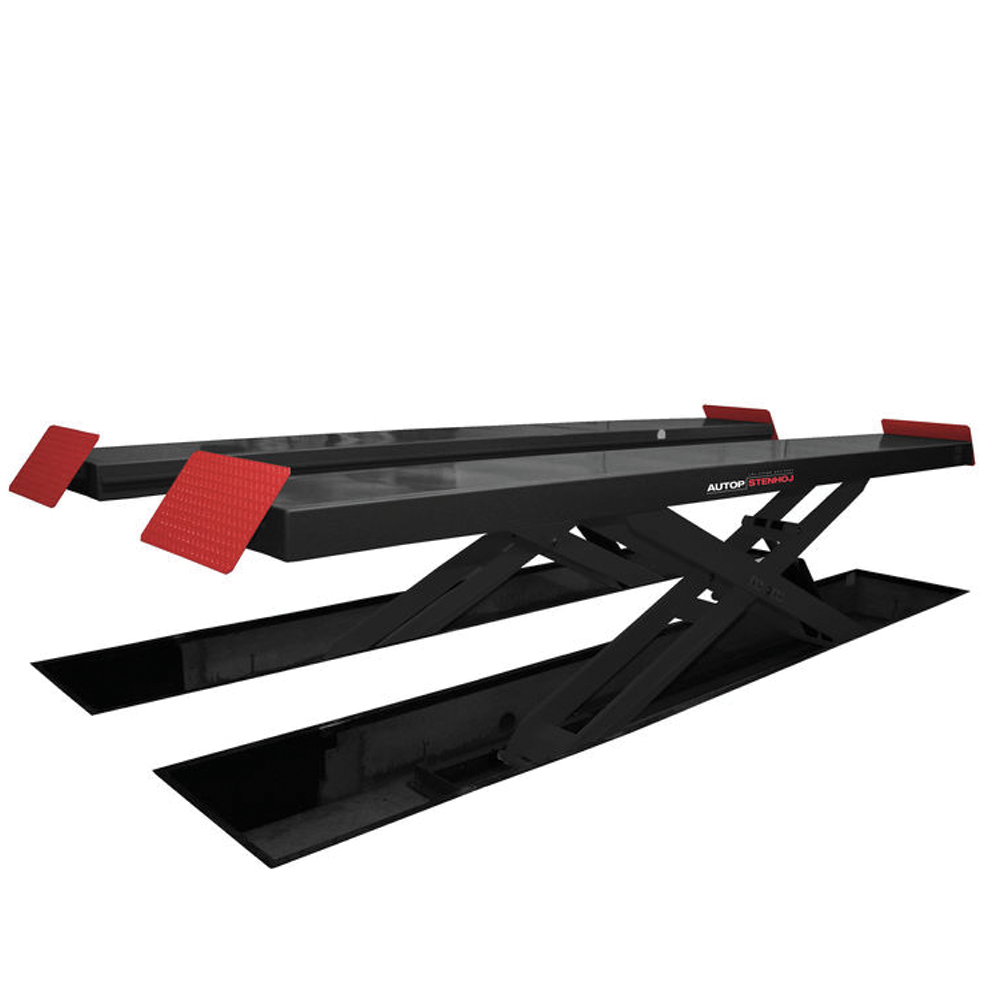

AUTOPSTENHOJ MagIX 50 Electro-Hydraulic Scissor Lift (5 Tonne)

Finance options available (Subject to credit)

The AUTOPSTENHOJ MagIX 50 Series of scissor lifts compromises of four different models with three choices of platform lengths. These lifts have an impressive lifting capacity of 5 tonnes.

As with all other AUTOPSTENHOJ scissor lifts, these lifts are electro-hydraulically operated and are fitted with a clever safety device should a pipe burst. In addition all models include LED lighting, recessed drive over ramps (suitable for recessed in-ground applications), end stops, hose covers and expansion bolts.

WL versions for wheel alignment also feature a special locking device (parking mechanism) for accurate wheel alignment.

The four models to choose from are as follows :
SI model – Standard flat platforms (no integral/secondary lifting)

SI Combi model – Standard flat platforms with integral/secondary lifting

WLI model – Wheel alignment model with rear slip plates and front recesses for turn plates (turn plates excluded) without integral/secondary lifting

WLI combi model – Wheel alignment model with rear slip plates and front recesses for turn plates (turn plates excluded) with integral/secondary lifting

ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.

AUTOPSTENHOJ Lifts are manufactured in Denmark

Brand: Autopstenhoj

CALL FOR PRICE

Tech Spec


Lifting Capacity	5,000kg
Lifting/Lowering Time	55 seconds
Platform Height	340mm
Maximum Height	1810mm
Platform Length	4500mm or 4800mm or 5200mm
Platform Width	660mm
Jacking beam rails	Yes
Overall width of lift	2120mm – 2320mm
Motor Size	3kw
Power Required	3 phase (16amp isolator required)
Operation	Electro-hydraulic
