Bradbury 1040S (ATL One Man) Class 4 Brake Tester

Bradbury 1040S (ATL One Man) Class 4 Brake Tester

Finance options available (Subject to credit)

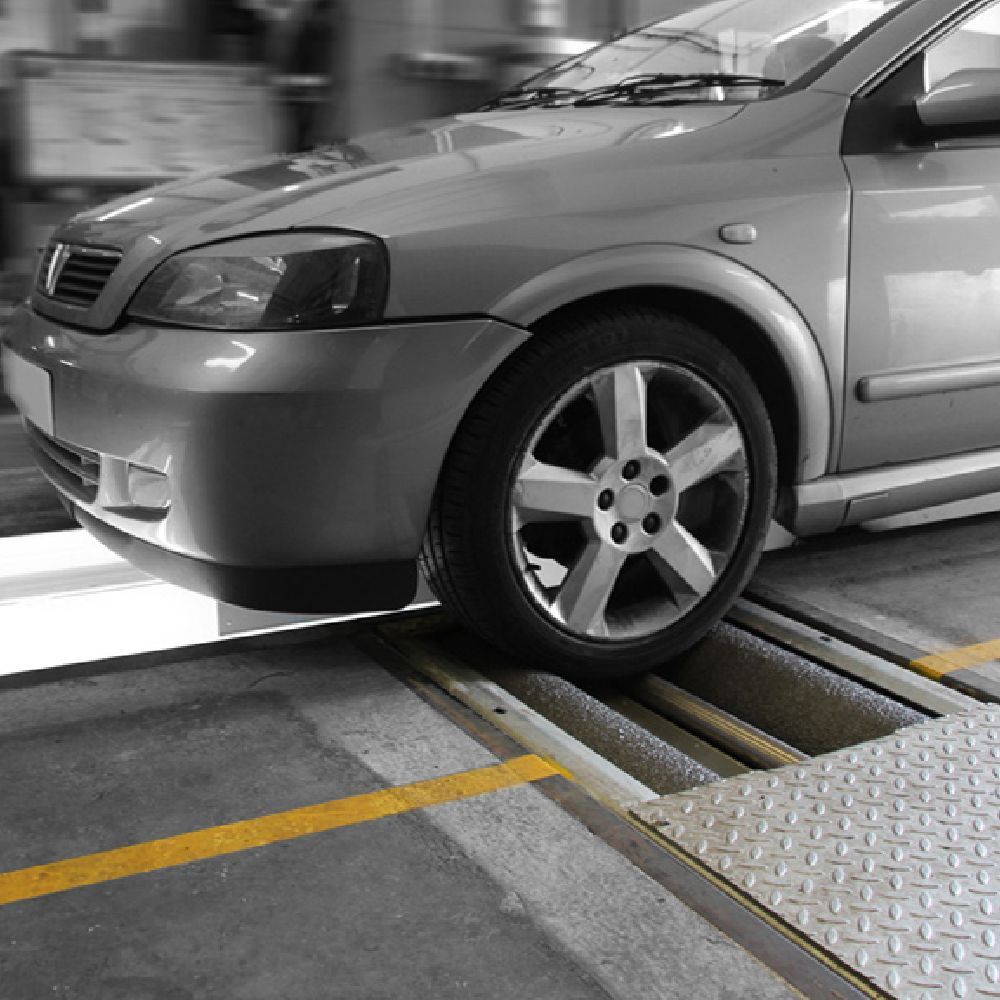

The Bradbury 1040S roller brake tester is DVSA approved for class 4 testing (ATL) – one man operation using a supplied tablet device.



Brand: Bradbury



CALL FOR PRICE

Tech Spec

1040 (Class 4 Brake Tester) Specification
Overall size of unit ( L x W x H) 2320mm x 680mm x 260mm
Diameter of rollers 205mm
Standard length of rollers 700mm
Maximum axle test weight 2000kg axle (4000kg drive over)
Gear motor size 3kw x2
Test speed 5km/h
Maximum brake force measurement 600kgf
Power requirement 20amp motor rated – 3 phase
Tablet operated Yes
Linkable to gas & smoke Yes

Features

  • Tablet with rugged case supplied as standard for operation
  • 50m range
  • Single bed system easily retrofitted into your existing recess
  • Can be linked to emission analyser or separate PC/Trolley available
  • Manual and automatic test procedures
  • Easy exit traction drive out system (patent pending)
  • Galvanised sub frames for simplified installation
  • Galvanised roller cover plated as standard
  • Made in Germany
  • Fully galvanised roller beds with unique roller surface
  • Motorcycle upgrade available
