Bradbury H4543 Four Post Wheel Free Lift (5.0 tonne)

Bradbury H4543

4 Post Wheel Free Lift (5.0 tonne)

Finance options available (Subject to credit)

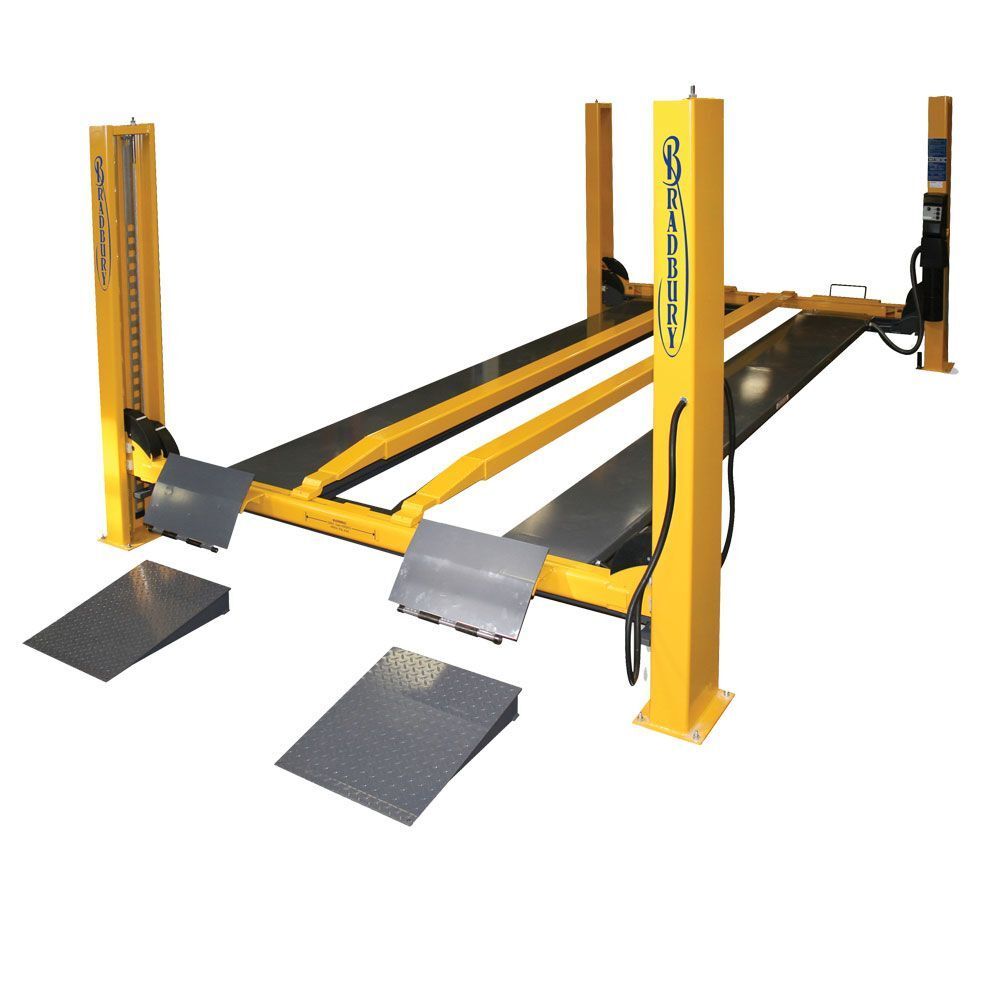

The Bradbury wheel free lift is one of a kind and is highly versatile! This patented product, which has been around for decades, is almost like having two lifts in one. The wheel free beams, which slide laterally along the cross beam to jack the vehicle up, lift in conjunction with the platforms which can then be lowered whilst the vehicle remains in place in the air on these wheel free beams! The specially designed vehicle parking system is fully automatic and managed entirely by the control box.

Available in both single and three phase.

Suitable for cars and vans.

**Please note that the colour may vary from that shown in the picture, new colours for 2021 are Grey RAL7016 with yellow Bradbury Decals**

Brand: Bradbury

CALL FOR PRICE

Tech Spec


Lifting capacity	5.0 tonne
Lifting/ lowering time	22 seconds
Platform length	5450mm
Overall length	6725mm
Overall width	3425mm
Each platform length	630mm
Distance between platforms	915mm
Electrical Supply – 3 Phase	Motor 380 – 415V, 3 kW
Electrical Supply – 1 Phase	Motor 220 – 240V, 1.1kW
Operation	Electro-Hydraulic

Features

Suitable for cars and vans
Safe and reliable hydraulic operation
Low maintenance costs
Suitable for servicing tyres and exhausts
Automatic air operated parking brake
Various locking heights
User friendly button operation for engaging the wheel free beams in a quick and efficient manner
Health and Safety buzzer operation when lowering
Can be recessed or surface mounted
Optional lighting kit available for greater visibility under the vehicle
Vehicle parking system allows the vehicle to be lowered onto safety latches ensuring complete safety whilst working underneath the vehicle
Overload safety valve
Parachute valve
