Bradbury 1040S (ATL One Man) Class 4 Brake Tester
£0.00
Finance options available (Subject to credit)

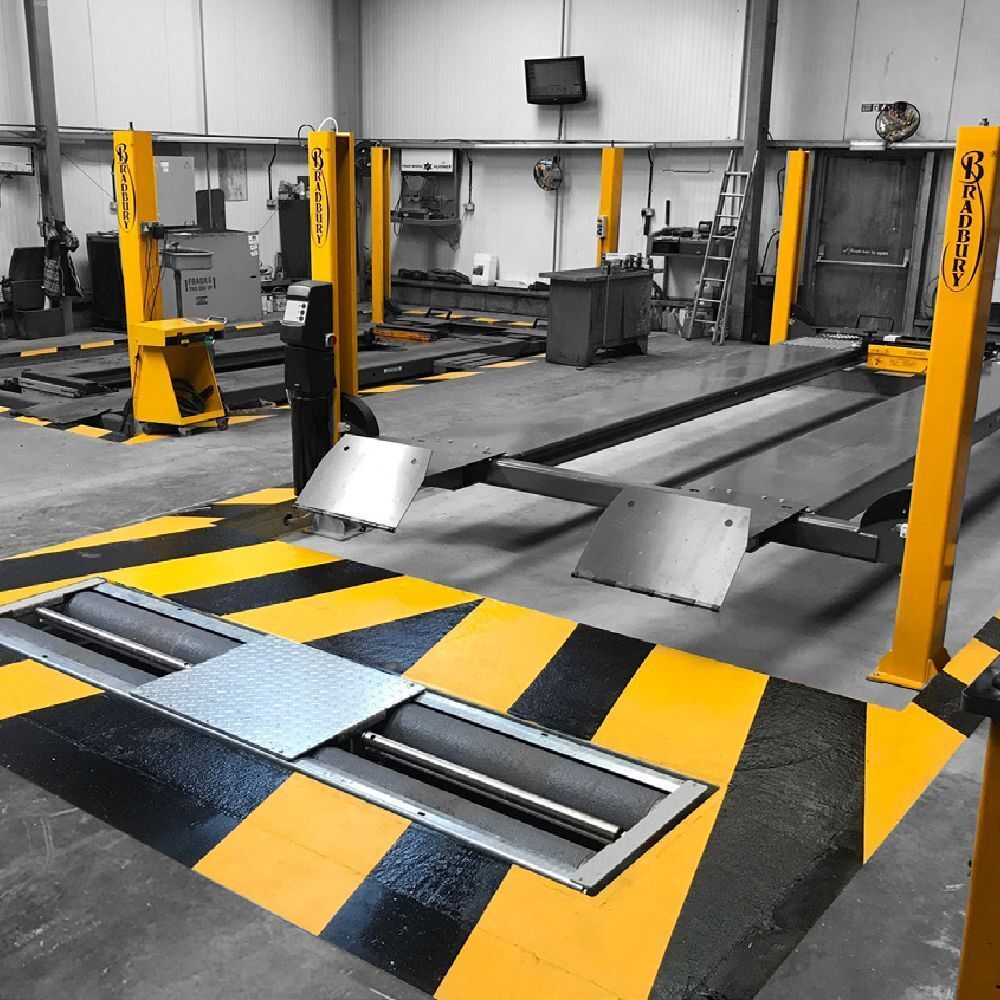

The Bradbury 1040S roller brake tester is DVSA approved for class 4 testing (ATL) – one man operation using a supplied tablet device.
- Tablet with rugged case supplied as standard for operation
- 50m range
- Single bed system easily retrofitted into your existing recess
- Can be linked to emission analyser or separate PC/Trolley available
- Manual and automatic test procedures
- Easy exit traction drive out system (patent pending)
- Galvanised sub frames for simplified installation
- Galvanised roller cover plated as standard
- Made in Germany
- Fully galvanised roller beds with unique roller surface
- Motorcycle upgrade available
Technical Specifications
| 1040 (Class 4 Brake Tester) | Specification |
|---|---|
| Overall size of unit ( L x W x H) | 2320mm x 680mm x 260mm |
| Diameter of rollers | 205mm |
| Standard length of rollers | 700mm |
| Maximum axle test weight | 2000kg axle (4000kg drive over) |
| Gear motor size | 3kw x2 |
| Test speed | 5km/h |
| Maximum brake force measurement | 600kgf |
| Power requirement | 20amp motor rated – 3 phase |
| Tablet operated | Yes |
| Linkable to gas & smoke | Yes |
